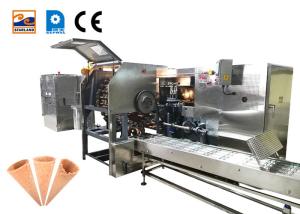

Commercial Industrial cone making machine , Factory Direct Sales.
Competitive Points of cone making machine
1.High Productivity: Using Frequency conversion speed control
2.Automation Device: Constant quantitative grouting, automatic opening, grabbing the egg tube,
and rolling the finished product
3.Good Color of Sugar Cone: The baking pan is made of high-quality cast iron
4.Easy to Use: The operation panel can choose easy button operation or PLC controller for setting
5.High Security: The production line equipment is equipped with a leak detection and alarm system.
The machine consists of a 200 x 240 mm baking pan made of high quality iron. each
The baking pan can be made into two tapered plates. This machine is suitable for making
A flat sugar cone less than 180 mm in length. Taper, weight, thickness and pattern spacing
can be customized according to customer requirements.
The machine is driven by three-phase power supply, the oven by gas (natural gas or liquefied
gas) heating, electric heating ignition, oven temperature electronic display. Electronic display
of temperature. Production capacity is very high, from spraying batter, baking, molding,
demoulding, product delivery, stacking and counting are fully automatic. Automatic completion.
cone making machine Specifications
| Applicable Industries | Food & Beverage Factory, Other |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location | None |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2021 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Condition | New |
| Place of Origin | China |
| Brand Name | STARLAND |
| Model Number | CBII-51*2A |
| Voltage | 220V/380V |
| Weight | 5500KG |
| Dimension(L*W*H) | 6000L x 2400W x 1800H |
| Certification | CE |
| Warranty | 1 Year |
| Key Selling Points | High Productivity |
| Number of Baking Plates: | 51 |
| Standard Cone /hour**: | 1800(23°,L170mm) |
| Place of Origin: | China |
| Gas consumption(kg)/ hour: | 4-5 |
| name: | cone making machine |
| Material: | Stainless Steel |
| Main Motor Specification: | 1.5hp;1.0KW |
Our Services
1. All the products have one year guarantee.
2. Providing professional installation instructions and video of troubleshoot.
3. We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
FAQ
♦ What kind of ice cream cone your machine can make?
Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer biscuit cone.
♦ What’s the voltage of your machines?
380V,other voltage can be customized.
♦ 3.How can i get quotation?
Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you
quotation soon.
♦ Do you have automatic ice cream cone production line?
Yes,we have several models can be choose.
♦ Which kind of payment method you can accept?
T/T.Western Union,L/C.
After Sale Service
♥ Warranty policy one year from shipment
♥ We will send you the replacement after received the broken part
♥ Evaluate the customs rish and choose safest shipping company before shipping.
♥ Follow status up time by time until the goods arrived.
CONE EJECTION SYSTEM.
(UTILITY MODEL PATENT#: ZL200820043161.9,ZL 200820189568.2 ).
Easy to use and maintain. Flexible cone ejector device with springs allows cone diameter within
2mm difference to be ejected, no matter flat-top or natural rimmed cone.
stareel system
wafer takes shorter path from baking plates to rolling molds.use of sugar and oil can be reduced.

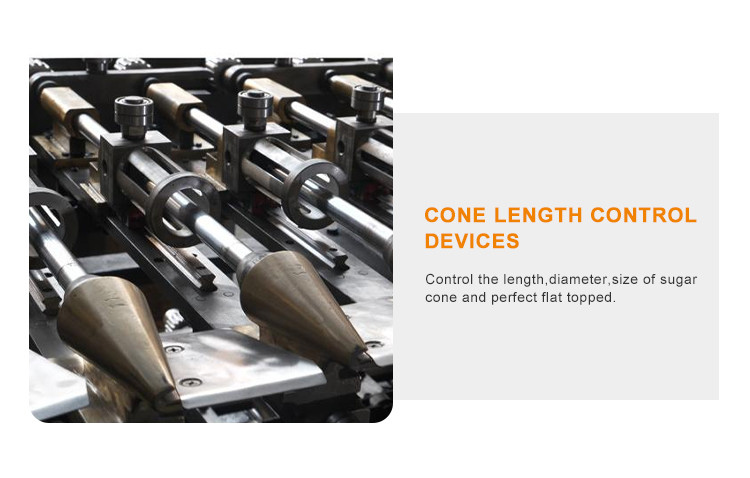

CONE LENGTH CONTROL DEVICES
Control the length,diameter,size of sugar cone and perfect flat topped.
SYCHRONIZED ROTARY CONE TRANSFERRING SYSTEM
Same horizontal movement with the rolling reel during cone ejection to ensure perfect
cone transfer.
'HEARTTO HEA RT' ROTATION DEVICE
Place natural rimmed cone into the same position before packing.
DURABLE BAKING PLATES.
(UTILITY MODEL PATENT#: ZL200920008201.0).
Material is nodular cast iron. It is stable and durable. Still good in our factory after 10 years use.
Plates are designed and patented in a way to maximize heat absorption.

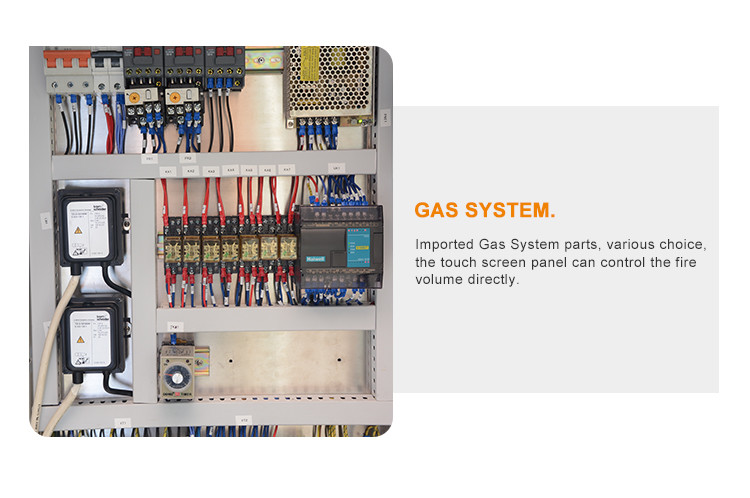

Gas system.
Imported Gas System parts, various choice, the touch screen panel can control the fire
volume directly.
In1950,founderMr.Ho ShuTongmoved from China to Macau. To make a living for his family in
thisnewplacehelearned handmade cones from a street stall. Hand-making cones earned
enough for the family to moveto Hong Kong. Ho and his wife, madam Lai Yuk Mei rented a shop
in KowloonHoHauIce-creamsConeCo.Ltd was officially registered when spaces in industrial
buildingwerepurchasedin1973.Ho Hau became the only cone baker for Hong Kong market
lateron.They built a sold foundation for the company's future development.
The second generation succeeded the business in the 80's. Their new thinking, vision and market
opportunities broughtHo Hau cone business into a new horizon. Automation was introduced in
productiontoincrease efficiencyandquality. As Mainland China continued its economic reform,
Guangzhou StarlandFoodCo.Ltd was set up in the 90's with selfowned land to explore and
develop thisfast-growingmarket.Starland developed its first automatic cone baking machine in
the late 90's with knowledge accumulated over the decades and various professionals available in
China.Auhui StarlandFoods Machinery Co.Ltd was established in 2005 for the abundant natural
and human resources and be ready to serve the inland market.
For more than half a century, the family members dedicated themselves to do everything about
ice-cream cones.From conesto machines to solution, we are still working on it day in day out
WithconeproductionusingourStarland machines, we are trying to improve recipe, management
system and machine design every day There is only one purpose: to make nice, strong and
hygienic cone efficiently and reliably for consumers.
